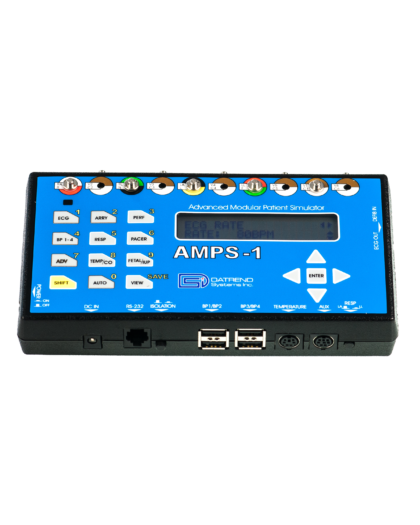

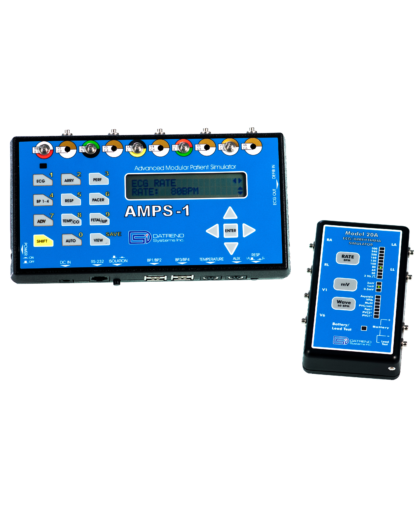

AMPS-1

Advanced Modular Patient Simulator

  • Full 12-lead ECG simulation with multiple outputs
  • Wide selection of arrhythmias
  • Temperature and respiration simulations
  • Optional Mechanical Fetal Heart and Cardiac Output Module
  • Portable, battery-operated
Receive more info and pricing from your local dealer

Main content

Don’t Let the Size Fool You.

This compact Simulator packs a lot of punch in a small package. Measuring only 7” x 4” x 1.25″, AMPS-1 fits comfortably in your hands with all leads and cables conveniently fed from the top and bottom ends. Operate from the single 9-volt alkaline battery or with the optional battery eliminator.

The unique modular design of AMPS-1 allows you to get just what you need as you need it. Upgrading and adding modules is easily accomplished by you at your facility. No need to send it to a repair facility just to add features.

The Standard AMPS-1 is Packed With…

  • 12 lead ECG simulation with 9 independent outputs for each signal lead
  • 16 total ST Segments: 8 elevated and 8 depressed
  • Axis Deviation: Normal (intermediate), horizontal, and vertical. (Modifies baseline ECG during arrhythmias)
  • Neonatal Mode: ECG R wave width is reduced to 40ms
  • ECG Performance Testing
  • 52 Arrhythmia selections
  • Temperature and Respiration Simulations
  • Pacer simulations
  • Defibrillator training
  • Remote Control via RS-232

As Your Workload and Budget Dictate, Easily Add…

  • 2 or 4 Electrically Isolated BP Channels, including Swan-Ganz simulation
  • Cardiac output
  • Mechanical Fetal Heart
  • Fetal, Maternal and IUP simulations

Cable

3140-399
3140-399

Adaptor, USB To Serial DB9M

3140-429
3140-429

Cable, RJ12(6P6C) – RJ12), Tester Interface, 7’ (ES601 to AMPS-1)

7200-098
7200-098

Cable Assy, Unterminated IBP Cable, AMPS-1

7200-239
7200-239

Cable Assy, Colin A308 6Pin IBP Cable

7200-454
7200-454

AMPS-1 YSI 400 Temp Cable (6 Pin Mini-Din - 1/4" Mono Phono Plug)

7200-455
7200-455

AMPS-1 YSI 700 Temp Cable (6 Pin Mini-Din - 1/4" Stereo Phono Plug)

7200-463
7200-463

Invasive BP Cable, Datascope, 6 Socket

7200-464
7200-464

Invasive BP Cable, Datex-Ohmeda, 10 Socket

7200-466
7200-466

Invasive BP Cable, GE/Marquette, 11 Pin

7200-468
7200-468

Invasive BP Cable, HP/Invivo/MDE, 6 Pin

7200-469
7200-469

Invasive BP Cable, HP/Philips, 12 Pin

7200-470
7200-470

Invasive BP Cable, Marquette, 7 Pin

7200-471
7200-471

Invasive BP Cable, Nihon Khoden, 5 Pin

7200-477
7200-477

Invasive BP Cable, Fukuda Denshi, 12 Pin

7200-479
7200-479

Invasive BP Cable, Criticare nCompass

7200-484
7200-484

IBP Cable, Spacelabs 91496, 10 Pin

7200-523
7200-523

IBP Adapter Cable, Siemens 10 Pin – 7 Pin

7200-524
7200-524

IBP Cable – Siemens 10 Pin

7200-530
7200-530

Temperature Cable, Philips / HP Simulator Cable (AMPS-1)

7200-531
7200-531

IBP Cable, Fukuda Denshi DS-8XXX

7200-562
7200-562

IBC Cable, Siemens Drager Gamma Infinity 7P

7200-584
7200-584

GE Cardiac Output Injectate Cable (without GE Cardiac Output)

7200-585
7200-585

Invasive BP Interface, GE/FLUKE

Power Cord

Placeholder
AMPS-1/FMS-3 SPS-AU/CN

AMPS-1/FMS-3 Power Supply, AU/CN

Placeholder
AMPS-1/FMS-3 SPS-EU

AMPS-1/FMS-3 Power Supply, EU

Placeholder
AMPS-1/FMS-3 SPS-NA

AMPS-1/FMS-3 Power Supply, NA

Placeholder
AMPS-1/FMS-3 SPS-UK

AMPS-1/FMS-3 Power Supply, UK

Kit

7500-435
7500-435

Kit, Serial Adapter, ES601 -> P3/Solo, AMPS-1 -> PC (RJ12 -> DB9F) (ES601 to Solo/Phase3)

Companion Product

8000-454
8000-454

Cardiac Output Adapter

8000-455
8000-455

Mechanical Fetal Heart Adapter

Software

6960-100
6960-100

AMPS-1, 2 Electrically Isolated BP Channels (AMPS-1 software option)

6960-101
6960-101

AMPS-1, 4 Electrically Isolated BP Channels (AMPS-1 software option)

6960-102
6960-102

Cardiac Output (AMPS-1 software option) requires 6960-100 or 6960-101

6960-103
6960-103

AMPS-1, Fetal, Maternal & IUP (AMPS-1 software option) requires 6960-100 or 6960-101
