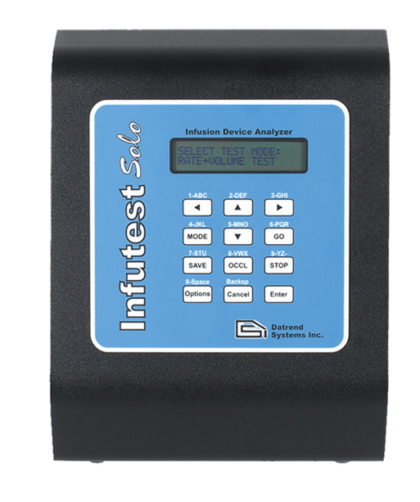

Highly Accurate and Cost-Effective Single-Channel Analyzer

Infutest Solo meets the needs of customers who desire a highly accurate infusion device analyzer capable of a measuring infusion device output flow patterns, including pulsatile flows, but can manage their work load with a cost-effective single-channel analyzer.

Memory Storage for up to 120 Tests

The Infutest Solo has internal memory storage for up to 120 test records. You can further expand testing capabilities by connecting the Infutest Solo to vPad* or ES601 Plus Electrical Safety Analyzers by running full auto sequences.

Store and Transfer Data Easily

When not connected to the ES601 Plus, it’s still easy to get information about the device under test into Solo. Just use the front panel keypad to enter or connect an external barcode reader to scan the control number of the pump you are testing. Store the test results on all of the pumps you process, then transfer the test data to the Infutest Solo PC Utility Software at your convenience via USB or RS-232. It’s that easy!

*vPad-ES/ES2/Rugged/Rugged 2

    • Accuracy – Better than 1% on ALL pumps, including Baxter Colleague and Alaris® Signature.
    • Portability – Infutest Solo allows both line and battery use. Battery provides up to 30 hours of continuous operation.
    • Auto-Test Mode – Enables automatic flow and pressure test for VTBI/Dose accuracy tests and more.
    • Multi-Pump Test Results – Infutest Solo will retain the test results for more than 120 pump tests in its internal memory until downloaded to a PC.
    • Keypad Input – Infutest Solo allows the user to enter an equipment control number from the front panel keypad or by using the optional RS-232 barcode scanner to uniquely identify individual tests.
    • USB Connectivity – Infutest Solo incorporates USB communication capabilities for efficient data transfer to your PC.
    • Data Transfer – Infutest Solo comes complete with Windows-based data transfer program (DTP-Solo) for quick and easy data transfer, plus organization and printing of test results.
    • vPad and ES601 Plus Connectivity – Connect Infutest Solo to your vPad* or ES601 Plus Electrical Safety & Performance Analyzers for the ultimate in capability and flexibility!

*vPad-ES/ES2/Rugged/Rugged 2

Cable

Placeholder
3140-400

Cable, Null Modem, DB9F TO DB9F, (Phase 3/Solo to PC via RS-232)

Placeholder
3140-403

Cable, USB A-B Male, 6'

Power Cord

Placeholder
3000-400

SPS,15W WPI, 100-240VAC, 18VDC/840MA, No AC Input (must add AC Input below)

Placeholder
3000-401

AC Input For 6W/15W WPI SPS, NA

Placeholder
3000-402

AC Input For 6W/15W WPI SPS, EU

Placeholder
3000-403

AC Input For 6W/15W WPI SPS, UK

Placeholder
3000-404

AC Input For 6W/15W WPI SPS, AU

Kit

Placeholder
7500-435

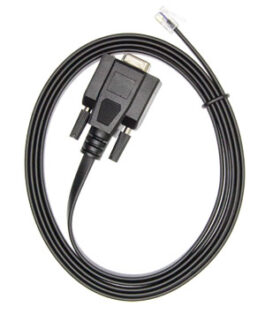

Kit, Serial Adapter, ES601 -> P3/Solo, AMPS-1 -> PC (RJ12 -> DB9F) (ES601 to Solo/Phase3)

Barcode Scanner

Placeholder
7600-051

Barcode CCD Scanner (RS232) c/w Case

Placeholder
7600-052

Barcode CCD Scanner (PS-2) c/w Case

Tubing Set

Placeholder
7300-012

Assy, IFT Solo Input Output Tubing

Syringe

Placeholder
7006-006

Syringe, 60 cc, Luer Lock Tip
