FMS-3

Fetal Maternal Simulator

  • Fetal simulation – two direct Fetal ECGs
  • Five Maternal ECG leads
  • Three independent Fetal ultrasound channels with “triplets” capability
  • Portable, battery-operated
Receive more info and pricing from your local dealer

Main content

More Value in a Compact Design

At just 5.5” x 3.6” x 1.3” and weighing only 11.5 ounces, the FMS-3 is a feature-packed Fetal/Maternal simulator. It’s smaller, lighter and more cost-effective than any other similarly-featured Fetal/Maternal simulator on the market today.

The FMS-3 Fetal/Maternal Simulator sets a new standard of performance and value in simulators for fetal monitors. Simply stated, the FMS-3 provides enhanced simulation capabilities, more simulation channels, additional functionality, and full 5-lead Maternal ECG simulation, all at a price that is considerably less than competitive models.

Its unique features include three (3) independent channels of ultrasound simulation for detection and monitoring of “Triplets”.

  • Two (2) direct Fetal ECG’s
  • Five (5) full Maternal ECG leads
  • Four (4) separate Fetal ECG tracings
  • Three (3) Fetal ultrasound channels with “Triplets” capability
  • Thirteen (13) Fetal static ECG rates
  • Fifteen (15) trends of Fetal data representing real-life case studies
  • Large easy-to-read display with backlight
  • Easy to operate
  • Remote Control
  • Single 9-volt battery operation or use with an external AC power adapter for continuous simulation.

Cable

3140-429
3140-429

Cable, RJ12(6P6C) – RJ12), Tester Interface, 7’ (ES601 to AMPS-1)

7200-474
7200-474

Intrauterine Pressure Cable, HP 8040A/HP 50IX/Pegasus M1350A, 12 Pin

7200-476
7200-476

Intrauterine Pressure Cable, Philips Avalon, 7 Pin

Placeholder
7200-498

TOCO Cable, Huntleigh External – 12 Pin

7200-499
7200-499

Ultrasound Cable, Philips Series 50

7200-511
7200-511

TOCO Cable, Corometrics External

7200-512
7200-512

Ultrasound Cable, Corometrics 116 (5700)

7200-514
7200-514

Ultrasound Cable, Huntleigh/Sonicaid 2 MHz

7200-515
7200-515

Ultrasound Cable, Huntleigh/Sonicaid 1.5 MHz

7200-516
7200-516

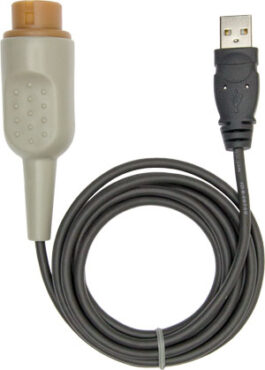

IUP/TOCO Cable, Philips/HP 40uV 50/8040 – 12 Pin

7200-518
7200-518

IUP/TOCO Cable, Corometrics

7200-519
7200-519

TOCO Cable, Agilent 8040 External

7200-520
7200-520

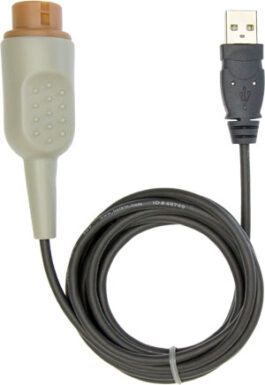

TOCO Cable, Agilent Series 50 External

7200-521
7200-521

Ultrasound Cable, Philips/HP8040A

7200-522
7200-522

IUP/TOCO Cable, Huntleigh – 12 Pin

Placeholder
7200-532

Ultrasound Cable, Huntleigh/Oxford 1 MHz

Placeholder
7200-533

TOCO Cable, Huntleigh/Sonicaid BD4000

Placeholder
7200-534

Ultrasound Cable, Bionet FC1400

Placeholder
7200-535

Ultrasound Cable, Bionet FC700

Placeholder
7200-536

TOCO Cable, Bionet FC700

Placeholder
7200-537

Ultrasound Cable, EDAN

Placeholder
7200-538

TOCO Cable, EDAN

Power Cord

Placeholder
AMPS-1/FMS-3 SPS-AU/CN

AMPS-1/FMS-3 Power Supply, AU/CN

Placeholder
AMPS-1/FMS-3 SPS-EU

AMPS-1/FMS-3 Power Supply, EU

Placeholder
AMPS-1/FMS-3 SPS-NA

AMPS-1/FMS-3 Power Supply, NA

Placeholder
AMPS-1/FMS-3 SPS-UK

AMPS-1/FMS-3 Power Supply, UK

Kit

7500-435
7500-435

Kit, Serial Adapter, ES601 -> P3/Solo, AMPS-1 -> PC (RJ12 -> DB9F) (ES601 to Solo/Phase3)

Case/Bag

7006-050
7006-050

Accessory Bag, 8.5” x 6” x 2.75” (Large)

7006-053
7006-053

Soft Case, Small Multi-Product Bifold, 8” x 6” x 5-1/2”

Companion Product

8000-455
8000-455

Mechanical Fetal Heart Adapter
