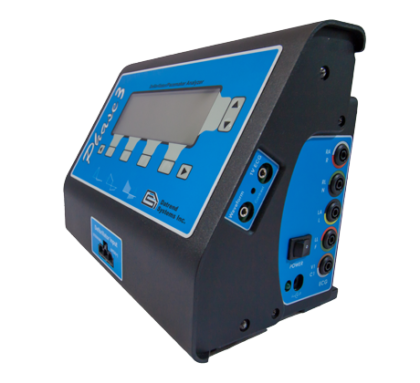

Phase 3

Defibrillator / Pacer Analyzer

  • Test all available defibrillators, including monophasic, biphasic, and pulse biphasic waveforms
  • Test AED’s and pacers
  • 32 Autosequences – Save time, save money, save manpower
  • Lightweight – battery operated
Receive more info and pricing from your local dealer

Main content

Test Pulsed Multiphasic Defibrillators

Phase 3 is the first Defibrillator/Pacer Analyzer specifically designed to test Pulsed Multiphasic defibrillators. Test Monophasic, Biphasic and Pulsed Multiphasic Defibrillators, AEDs and Transcutaneous Pacers with better than 1% accuracy on either line or battery power. Battery provides up to 24 hours or continuous operation and detachable paddle plate provides easy hands-free testing.

Testing Capabilities

USB Communication capability allows real-time waveform capture and efficient data transfer to your PC. Capture high-resolution signal data to a PC running Phase3pc software. Store up to 80 test records and up to 10 defibrillator discharge waveforms as Wave Records.

Use Phase 3pc companion software to create and edit autosequences, download and store test data and wave graphics to your PC. Phase3pc companion software is included as a standard accessory.

Add our exclusive VLM (Variable Load Module) to test in accordance with AAMI DF-80 and IEC 60601-2-4.

Versatility

Phase 3 tests Monophasic, Biphasic and Pulsed Multiphasic Defibrillators, AEDs and Transcutaneous Pacers with better than 1% accuracy on either line or battery power.

Portability

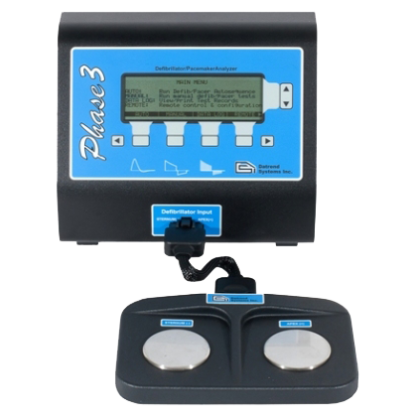

Detachable Paddle Plate provides easy hands-free testing. Battery provides up to 24 hours of continuous operation.

USB Connectivity

USB Communication capability allows real-time waveform capture and efficient data transfer to your PC.

Real-Time Wave Capture

Capture high-resolution signal data to a PC running Phase3PC software immediately after discharge.

Test Record Storage

Phase 3 provides storage for up to 50 Test Records and up to 10 defibrillator discharge waveforms as Wave Records.

Variable Load Module

Our optional, exclusive VLM allows testing defibrillators at maximum energy with selectable loads from 25 to 175 ohms, in accordance with AAMI DF-80 and IEC 60601-2-4. High-resolution wave graphics and test data are obtained with Phase 3VL software — a standard accessory to the VLM.

Phase 3PC Companion Software

Included as a standard accessory, Phase 3pc allows you to create and edit autosequences, download and store test data and wave graphics to your PC.

Cable

3140-010
3140-010

Cable, RS232, DB9M-DB9F, 6' (ES601 to PC via RS-232)

Placeholder
3140-400

Cable, Null Modem, DB9F TO DB9F, (Phase 3/Solo to PC via RS-232)

Placeholder
3140-430

Adapter, DB25S(F) TO RJ12F (6 CONT)

3140-440
3140-440

Cable, USB 2.0, A/B, 20/28 AWG Phase 3 to PC via USB

7200-444
7200-444

Cable Assy - Phase 3 Paddle Adapter Interconnect 9”

7200-445
7200-445

Cable Assy - Phase 3 Unterminated Defib Adapter

7200-446
7200-446

Cable Assy - Phase 3 Unterminated Pacemaker Adapter

Placeholder
7200-448

Cable Assy - Phase 3 Banana Jack Adapter

Placeholder
7200-451

Cable Assy - Phase 3 Paddle Adapter Interconnect 24”

7200-485
7200-485

Phase 3 Defib Handsfree Cable, Anderson

7200-486
7200-486

Phase 3 Defib Handsfree Cable, Zoll

7200-487
7200-487

Phase 3 Defib Handsfree Cable, Physio

Placeholder
7200-488

Phase 3 Defib Handsfree Cable, Philips

Placeholder
7200-489

Phase 3 Defib Hands Free Cable, HP Barrel

7200-525
7200-525

Phase 3 Handsfree Pacer Adapter Cable, ZOLL

7200-526
7200-526

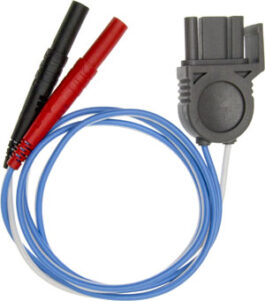

Phase 3 Handsfree Pacer Adapter Cable, PHYSIO

7200-527
7200-527

Phase 3 Handsfree Pacer Adapter Cable, PHILIPS

Power Cord

3000-004
3000-004

Power Cord, UK

3000-006
3000-006

Power Cord, EU

3000-500
3000-500

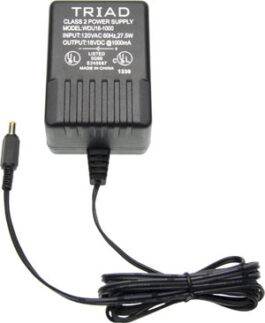

LPS, 120VAC / 15VDC (EIAJ-3, C+), 800/1000mA, NA

3000-501
3000-501

LPS, 240VAC / 15VDC (EIAJ-3, C+), 800mA, UK

3000-502
3000-502

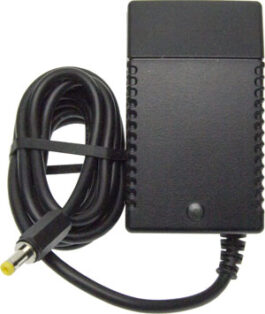

LPS, 220VAC / 15VDC, 800mA, EU

Kit

Placeholder
7500-424

Kit, Serial Adapter, MedTester To Phase3

7500-425
7500-425

Kit, Banana Plug/ECG Snap Adapter (Set Of 10)

Case/Bag

Placeholder
7006-050

Accessory Bag, 8.5” x 6” x 2.75” (Large)

Placeholder
7006-052

Accessory Bag, 7” x 5” x 3” (Medium)

Placeholder
7006-442

Soft Carry Case For Phase 3 (Black)

Companion Product

Placeholder
8000-460

Phase 3 Variable Load Module c/w Accessories

Barcode Scanner

Placeholder
7600-051

Barcode CCD Scanner (RS232) c/w Case

Paddle Adapter

7400-442
7400-442

Assy, Phase 3 Paddle Adapter, Adult

Placeholder
7400-443

Assy, Phase 3 Paddle Adapter, Internal
