vPad-ES 2

A New Era in Test Device User Interfacing

The vPad series of electrical safety testing devices combines an Android tablet (wired or wireless) with a measurement platform to create a revolutionary test system. The measurement platform provides the normal assortment of electrical measurements (voltage, current and resistance) of the commonly used medical Electrical Safety Standards.

Receive more info and pricing from your local dealer

Main content

Unprecedented usability and scalability.

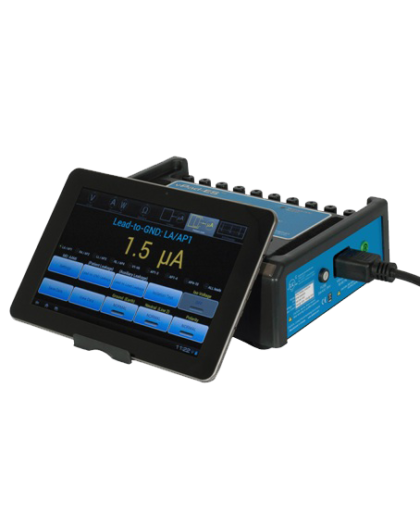

vPad‐ES 2 is the desktop version of the vPad-Rugged 2, both systems having the same feature set. It has been designed for users that do not normally need to move from location to location but still require a high level of automation and CMMS connectivity.

With a large 10.1″ (1920 x 1200) color display, Wi-Fi (802.11 b/g/n) and Bluetooth connectivity, USB, 32GB memory and much more, the Android tablet provides unprecedented usability and scalability for a test instrument.

  • Use the many benefits of Android tablet technology to optimize safety analysis
  • Save time, save money, save manpower!
  • Automate test sequences
  • Eliminate human error
  • Easy-to-read graphics and reports

Standard Features

  • Manual Electrical Safety Testing per IEC 62353, AS 3551, AAMI/ANSI ES-1 & IEC 60601 standards
  • Hi-resolution Android tablet Graphical User Interface
  • USB connection to measurement base; Bluetooth connection to base optional
  • Bluetooth connectivity for transfer of files to and from local devices (PC, smartphone, other tablets, etc.)
  • Extensive internal storage
  • Unlimited user comments in test records
  • Integrated ECG & Arrhythmia Simulator
  • Internal test record storage
  • Prints test result reports to Wi-Fi or Bluetooth printers
  • Increases quality, accuracy, and consistency

Optional Features

  • Automated Electrical Safety Testing per IEC 62353, AS 3551, AAMI/ANSI ES-1, IEC 60601 & NFPA-99 2012 standards
  • Can be upgraded from a basic manual tester to full automation with CMMS connectivity
  • Built-in wireless enables transfer of data from remote sites to corporate CMMS systems
  • DACOM multi-device, serial control of external test instruments
  • Can be configured to retrieve test data from non-Datrend Devices
  • Complete test procedures available instantly
  • Automated Testing Sequences for defibrillators, infusion devices, patient monitors, and more
  • All Auto-sequences and Checklists are 100% editable for total procedural Customization
  • Automatic “flagging” of test results that are outside of pre-established test limits
  • Prints inspection stickers to optional label printers
  • Automation Reduces paperwork, eliminates handwritten records, standardizes medical device testing
  • Automation Increases efficiency – may save in excess of 50% over manual testing & hand-written records

Standard Apps

vPad-Reports

vPad-Reports

Datrend Docs

Datrend Docs

Save, Store and Find Technical Documents.

The vPad Datrend Docs is a technical document library, ideal for storing electronic manuals, procedures and specifications. Datrend Docs comes installed with all Operator Manuals for the vPad family.

Record Manager

Record Manager

View/Print/Convert and Copy Test Reports.

Record Manager provides direct access to all test reports created by the vPad Apps. Reports can be reviewed on screen. In addition, reports can be converted to PDF documents; printed to a wireless printer; or copied to USB or a Bluetooth device (PC) one at a time, or in user-selected groups. Test records can also be transferred directly to DropboxTM, box, Google Drive and OneDrive. File management has never been so easy or complete on a basic manual safety tester.

vPad-ES

vPad-ES

Begin your Vision-Pad Experience with a new standard in Electrical Safety Testing.

vPad-ES provides basic electrical safety testing in a new, rich graphical environment using an Android tablet. Testing can be done following the requirements of IEC 60601 or AAMI-ES1 standards. Operated through a 10.1″ Android tablet, intuitive user interface, a 25-point physical inspection checklist, and the ability to create test records on the go, running electrical safety tests has never been so easy!

vPad-623

vPad-623

Taking vPad-353 to the New Levels!

vPad-623 is a second-generation Android App to run on either the vPad-ES 2 or the vPad-Rugged 2. Improvements were made to fully support testing in accordance with IEC 62353 using the Direct, the Alternate, and the Differential Leakage Testing methods. As individual tests are made, a test record is created in internal memory. The results can be viewed at any time or saved to a test report file for printing or distribution. A 25-point, fixed format physical inspection procedure is standard, and forms part of the final test report. Basic electrical safety testing has never been so easy!

Optional Apps

Placeholder

vPad-MC

Placeholder

vPad-MEMRI

vPad-HEMS

vPad-HEMS

vPad-EQT

vPad-EQT

One App for all standards

Available on the vPad-ES2 & Rugged 2 platforms, vPad-EQT provides an integrated, stand-alone solution for electrical safety testing, visual inspection and performance testing of all types of equipment. The app implements automated safety testing according to the IEC62353, IEC60601, IEC61010 and NFPA99 standards and provides a basic level of visual inspection and performance test capability with a built-in checklist interpreter. A system of equipment records is maintained by the app, enabling immediate recall of equipment information and test.



vPad-AS

vPad-AS

Expand your Inspection Capabilities, Standardize your Test Methods, and Reduce Testing Times.

The vPad-AS is an automation application for the vPad-ES and ES 2, vPad-Rugged and Rugged 2 Electrical Safety Analyzers. This App provides the ability to automate the electrical safety test the way you require, to the Standard you want. Automation sequences, to follow the required Standard, can be created for as many scenarios as you can envisage, with no restrictions. These auto sequences can be named to your preference, with an additional description field to provide details of what the auto sequence entails – no more guessing. Test Instructions can be displayed, along with pictures or video to describe what to do during the test. In addition to this flexibility in creating electrical safety auto sequences, an Equipment Inspection, up to 50 steps, can also be tailored to your needs.

vPad-A6

vPad-A6

Customized Auto Sequences in accordance with IEC 62353.

vPad-A6 is an automated Electrical Safety Testing App designed to use and/or create automated electrical safety tests in accordance with IEC 62353. By creating and customizing auto sequences, users can categorize their managed inventory into grouped tests, allowing for consistency and repeatability. Including a test is as simple as selecting a check-box.

vPad-NFPA

vPad-NFPA

Electrical Safety Automation Testing in accordance to NFPA-99.

The vPad-NFPA has now become the go-to-method for Electrical Safety Testing in North America. This automation application for the vPad-ES and ES 2, vPad-Rugged and Rugged 2 has helped many organisations standardize testing on the equipment they manage. Not only could organisations control the type of tests they do through simple test selections, but they could also set higher pass/fail tolerances to further increase patient safety. Automation Apps such as vPad-NFPA has helped organisations large and small to standardize their testing, delivering a higher-level of quality and consistency.

vPad-STM

vPad-STM

Create Automated Electrical Safety Tests.

vPad-STM™ is a software application (App) which may be installed on vPad-ES 2™ and vPad-Rugged 2™ electrical safety analyzers, and which may be used in conjunction with vPad-AS™ and/or vPad-A6™ Apps to create automated electrical safety tests of arbitrary complexity. Such tests may be required when evaluating electrical safety of medical devices in full conformance with IEC standards.

vPad-STM provides these benefits when combined with the test capabilities of vPad-AS and vPad-A6:

  • Perform IEC electrical safety tests of equipment providing a variety of medical functions, where each medical function may have a differing number of applied parts (patient leads) and protection class (Type B, BF or CF)
  • Perform tests which combine measurements from different IEC safety standards, for example, perform leakage testing per IEC60601 in combination with insulation resistance testing per IEC62353
  • Perform electrical safety tests in accordance with Edition 2 of IEC60601, instead of Edition 3 which is the default used by vPad-AS when the “limits per standard” setting is enabled
vPad-Check

vPad-Check

The Ultimate Level of Automation.

Using a script based Checklist, the autosequence can now be any number of tasks, in any order, with pass/fail limits applied. Individual tasks can be almost anything: inspect, measure, pass/fail, electrical safety sequence (vPad-AS, vPad-NFPA or vPad-A6), etc. You will even be able to control other devices either wired or wirelessly, and import their test results. You can now create the test you want.

vPad-CAL

vPad-CAL

Tracks the Test Equipment Inventory, its Calibration Status, and includes this information in Tests Records.

As accreditation requirements change, the need to follow the tenets of the Quality Systems approach to all aspects of medical device maintenance is becoming the norm. One of these tenets is traceability. One of the requirements of a good, traceable service, preventive maintenance and calibration program is the ability to demonstrate that the work was performed using appropriate, calibrated test instruments. vPad-Cal provides a tool to track the test equipment inventory, its calibration status, and include this information in the test record for a device through the use of vPad-Check.

vPad-PM Tag

vPad-PM Tag

PM Label Printing Solution

This App is used to print preventive maintenance (PM) tags or labels from previously-saved test records through XBUS Smart Cable (XSC) accessories.

vPad-EQM

vPad-EQM

Equipment and Work Order Management system.

vPad-EQM is a simple and easy-to-use equipment manager app for your vPad system. Import your equipment information from any asset program that can create an Excel spreadsheet, or create it on-the-go as you encounter the equipment. Trace your work through work orders and test reports.

vPad-XPORT

vPad-XPORT

Convert Files to be Ready in Almost any Program.

vPad creates test reports in a text file format. vPad-XPORT can convert those files into a format that is compatible with your CMMS program. Currently, vPad-XPORT supports CSV, XML and MUP file formats, but if you can define your needs, we can probably create a conversion that works for your organization. Works in conjunction with vPad-mT.

vPad-mT

vPad-mT

Export Medtester Files to a vPad Compatible File.

If you are currently working with a CMMS program that produces medTester export files, vPad-mT will convert the files (MTEXPORT.ITM, MTEXPORT.LST, MTEXPORT.IDN) into a vPad-Check compatible file. (Pre-requisite: vPad-Check)

Placeholder

vPad-Secure

Customizable Security for your vPad Tablet.

vPad-Secure is a multi-level security App for the vPad Platform, designed for organizations who need the ability to control workflow from a central location. With four levels of security, vPad-Secure enables administrators to set the level of access available to users of the vPad system. Download the vPad Secure Brochure to learn more.

vPad-AIMS

vPad-AIMS

Phoenix Data Systems AIMS CMMS Interface App

vPad-CNX

vPad-CNX

Connectiv CMMS Interface App

vPad-MediMizer

vPad-MediMizer

Medimizer CMMS Interface App

vPad-Medusa

vPad-Medusa

CMMS Interface for Softpro Medical Systems Medusa CMMS System

vPad-TMA

vPad-TMA

CMMS Interface App for TMA





Packages

Placeholder

App-Pack-A

vPad-EQT, vPad-Check

Placeholder

App-Pack-B

vPad-EQM, vPad-Check

App-Pack-C

App-Pack-C

vPad-EQT, vPad-EQM + CMMS Interface App

Placeholder

App-Pack-D

vPad-EQT, vPad-Check, vPad-EQM

Placeholder

App-Pack-E

vPad-EQT, vPad-Check, vPad-EQM + CMMS Interface App

Placeholder

App-Pack-F

vPad-Check, vPad-EQM, CMMS

Placeholder

App-Pack-AS

vPad-AS, vPad-Check, vPad-Cal

App-Pack-A6

App-Pack-A6

vPad-A6, vPad-Check, vPad-Cal

Placeholder

App-Pack-NFPA

vPad-NFPA, vPad-Check, vPad-Cal

Placeholder

CMMS-AIMS

vPad-mTvPad-Check, vPad-AIMS

Placeholder

CMMS-EQM

vPad-EQM, vPad-Check, CMX

CMMS-TMA

CMMS-TMA

vPad-mTvPad-Check, vPad-TMA

Placeholder

CMMS-HEMS

vPad-mTvPad-Check, vPad-HEMS

Placeholder

CMMS-MC

vPad-EQM, vPad-Check, vPad-MC

Placeholder

CMMS-MEMRI

vPad-EQM, vPad-Check, vPad-MEMRI

Placeholder

CMMS-MM

vPad-mTvPad-Check, vPad-MediMizer

CMMS-mT

CMMS-mT

vPad-mTvPad-Check, vPad-XPORT, CMX

CMMS-Nuvolo

CMMS-Nuvolo

vPad-Check, vPad-Nuvolo

Cable

3140-069
3140-069

Cable, vPad XBus/XSC RJ12-RJ12, CROSSOVER BLACK 7'

3140-425
3140-425

XDK-Kelvin Cable

3140-475
3140-475

Kelvin Clamp Cable

Placeholder
7200-234

Kelvin Probe Cable with removable, insulated clip

Power Cord

3000-009
3000-009

Power Cord, 15A, HOSP, 10', NA, (NEMA 5-15P -> C19)

3000-010
3000-010

Power Cord, 20A, HOSP, 10', NA

3000-011
3000-011

Power Cord, EU1-16P, R/A Plug, 10', EU (Schuko CEE7-7 -> C19)

3000-012
3000-012

Power Cord, UK1-13P, R/A Plug, 10', UK (BS1363A -> C19)

3000-015
3000-015

Power Cord, 10', (BS546A -> C19), IN

3000-016
3000-016

Power Cord, Denmark 13A-250V, 13P Plug C-19 CONN 2.5M Black IEC 60320

3000-018
3000-018

Power Cord, Australia, 10', (AU2-15P -> C19)

3000-019
3000-019

Power Cord, 16A, 8’, Brazil, (BR3-20P -> C19)

Case/Bag

7006-065
7006-065

Backpack

7006-066
7006-066

Accessory Bag, 12 in x 6.5 in x 3 in

Interface Module

Placeholder
7400-103

vPad XSC AMPS-1 Interface Module(Serial + Bluetooth)

Placeholder
7400-104

vPad XSC AMPS-1 Interface Module(Serial/Wired)

Placeholder
7400-105

vPad XSC mBOX Interface Module(Serial + Bluetooth)

Placeholder
7400-106

vPad XSC MBOX Interface Module(Serial/Wired)

Placeholder
7400-109

vPad XSC Phase 3 Interface Module(Serial/Wired)

Placeholder
7400-110

vPad XSC Phase 3 Interface Module(Serial+Bluetooth)

Placeholder
7400-113

vPad XSC Impulse 7000 Interface Module(Serial/Wired)

7400-124
7400-124

vPad XSC Impulse 4000 Interface Module (Serial)

7400-125
7400-125

vPad XSC Impulse 454A Interface Module (Serial)

Printer

7050-058
7050-058

Compact Bluetooth Report Printer (80mm)

Barcode Scanner

Placeholder
7600-055

Barcode scanner (Bluetooth)

Upgrade Kit

Placeholder
7500-120

Bluetooth Wireless Option for vPad-ES 2 & 353
