vPad-A1

All-in-one Vital Signs Simulator

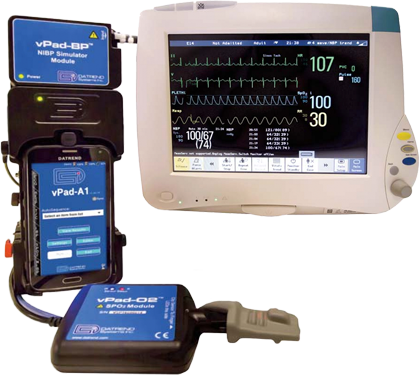

Datrend Systems’ vPad-A1, based on our revolutionary Vision-Pad TechnologyTM, is an all-in-one patient simulation system. vPad-A1 is modular and is comprised of a Multi-Parameter Patient Simulator, SpO2 test module, and a Non-Invasive Blood Pressure simulation module which may be used together or independently in various combinations, with an Android handheld device or vPad tablet providing the user interface.

Receive more info and pricing from your local dealer

Main content

Built on Datrends’ Vision-Pad Platform, vPad-A1 is the only modular Vital Signs Simulator currently on the market.

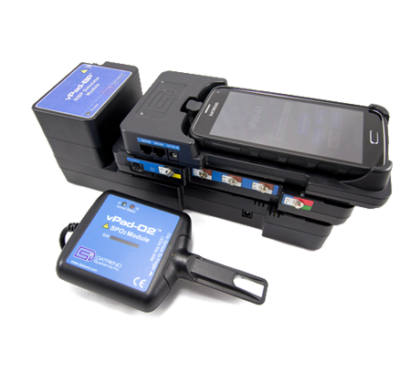

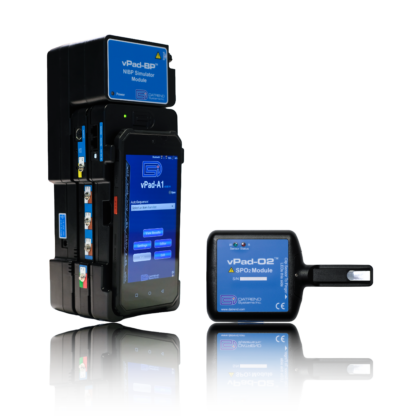

Comprising of 3 modules — vPad-PS (a Multi-Parameter Patient Simulator), vPad-O2 (a Pulse Oximeter Tester), and vPad-BP (a Non‐Invasive Blood Pressure Simulator) — the modules can be used together, independently, or in various combinations. Integrated user customizable SpO2 R-Curves and NIBP envelopes are a first in our industry.

  • 12 lead ECG simulation; independent outputs for each signal lead
  • ST Segments: 8 elevated and 8 depressed
  • Axis Deviation: Normal (intermediate), horizontal, and vertical.
  • Neonatal Mode
  • ECG Performance Testing
  • Over 60 Arrhythmia selections
  • 2 channel invasive BP simulation
  • Temperature and Respiration Simulations
  • Pacer simulations
  • Cardiac output*
  • SpO2 Pulse Oximeter Tester and Non-Invasive BP modules are compatible with all major industry manufacturers
  • Auto Settings
  • Auto Sequences
  • Test reports

*adapter optional

Standard Apps

vPad-Reports

vPad-Reports

Datrend Docs

Datrend Docs

Save, Store and Find Technical Documents.

The vPad Datrend Docs is a technical document library, ideal for storing electronic manuals, procedures and specifications. Datrend Docs comes installed with all Operator Manuals for the vPad family.

Record Manager

Record Manager

View/Print/Convert and Copy Test Reports.

Record Manager provides direct access to all test reports created by the vPad Apps. Reports can be reviewed on screen. In addition, reports can be converted to PDF documents; printed to a wireless printer; or copied to USB or a Bluetooth device (PC) one at a time, or in user-selected groups. Test records can also be transferred directly to DropboxTM, box, Google Drive and OneDrive. File management has never been so easy or complete on a basic manual safety tester.

vPad-A1

vPad-A1

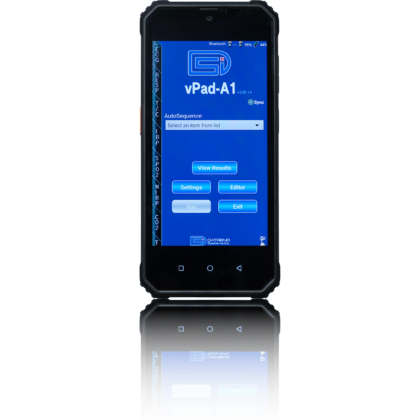

If you use the vPad-A1, then this is the only App you'll need!

Comes standard with every vPad-A1, vPad-O2, vPad-PS, and vPad-BP, the vPad-A1 is installed with a huge number of preconfigured settings out of the box. With functions for user programmable SpO2 R Curves and NIBP envelopes built-in, vPad-A1 is creating flexibility that has never been seen before. Like many other Apps offered in the vPad family, capability for Auto Sequences comes standard!

Cable

3140-069
3140-069

Cable, vPad XBus/XSC RJ12-RJ12, CROSSOVER BLACK 7'

3140-470
3140-470

GE Temperature Probe Adapter (YSI400)

7200-098
7200-098

Cable Assy, Unterminated IBP Cable, AMPS-1

7200-239
7200-239

Cable Assy, Colin A308 6Pin IBP Cable

7200-454
7200-454

AMPS-1 YSI 400 Temp Cable (6 Pin Mini-Din - 1/4" Mono Phono Plug)

7200-455
7200-455

AMPS-1 YSI 700 Temp Cable (6 Pin Mini-Din - 1/4" Stereo Phono Plug)

7200-463
7200-463

Invasive BP Cable, Datascope, 6 Socket

7200-464
7200-464

Invasive BP Cable, Datex-Ohmeda, 10 Socket

7200-466
7200-466

Invasive BP Cable, GE/Marquette, 11 Pin

7200-468
7200-468

Invasive BP Cable, HP/Invivo/MDE, 6 Pin

7200-469
7200-469

Invasive BP Cable, HP/Philips, 12 Pin

7200-470
7200-470

Invasive BP Cable, Marquette, 7 Pin

7200-479
7200-479

Invasive BP Cable, Criticare nCompass

7200-484
7200-484

IBP Cable, Spacelabs 91496, 10 Pin

7200-523
7200-523

IBP Adapter Cable, Siemens 10 Pin – 7 Pin

7200-524
7200-524

IBP Cable – Siemens 10 Pin

7200-528
7200-528

IBP Cable, Nihon Khoden, 5 Pin

7200-529
7200-529

IBP Cable, Fukuda Denshi, 12 Pin

7200-530
7200-530

Temperature Cable, Philips / HP Simulator Cable (AMPS-1)

7200-531
7200-531

IBP Cable, Fukuda Denshi DS-8XXX

7200-562
7200-562

IBC Cable, Siemens Drager Gamma Infinity 7P

7200-583
7200-583

Philips Cardiac Output Injectate Cable

7200-584
7200-584

GE Cardiac Output Injectate Cable (without GE Cardiac Output)

7200-585
7200-585

Invasive BP Interface, GE/FLUKE

Kit

7500-146
7500-146

NIBP Hose Tubing Adapter Kit

7500-422
7500-422

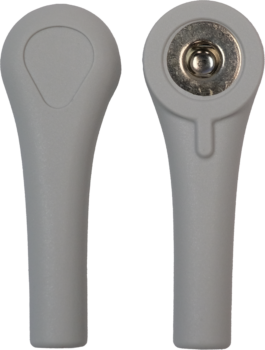

Banana 4mm Female to Snap End Adapter Kit (10 pieces)

7500-423
7500-423

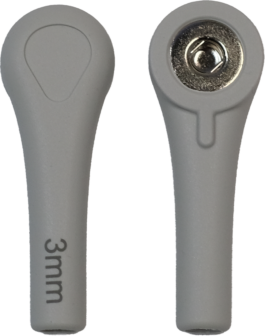

Needle 3mm Female to Snap End Adapter Kit (10 pieces)

Companion Product

7050-007
7050-007

Masimo Rainbow Optical Test Sensor, 20 pins, 3 ft.

8000-454
8000-454

Cardiac Output Adapter

8000-455
8000-455

Mechanical Fetal Heart Adapter

Interface Module

Placeholder
7200-154

vPad-PS ECG Breakout Box

7400-126
7400-126

vPad-A1 remote control PC Interface Module

vPad-A1 Accessory Kit

7500-505
7500-505

vPad-A1 Accessory Kit, NA

7500-506
7500-506

vPad-A1 Accessory Kit, Europe

7500-507
7500-507

vPad-A1 Accessory Kit, UK/Malaysia

7500-508
7500-508

vPad-A1 Accessory Kit, AU/CN

Misc

7500-490
7500-490

4-Blade Set For AC Input For 6W/15W WPI SPS (Oxitest) Contains NA, EU, UK & AU/CN
