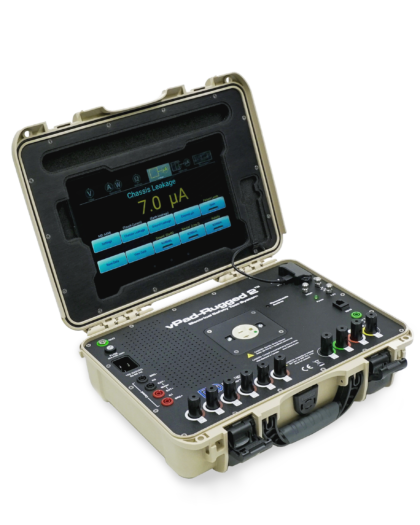

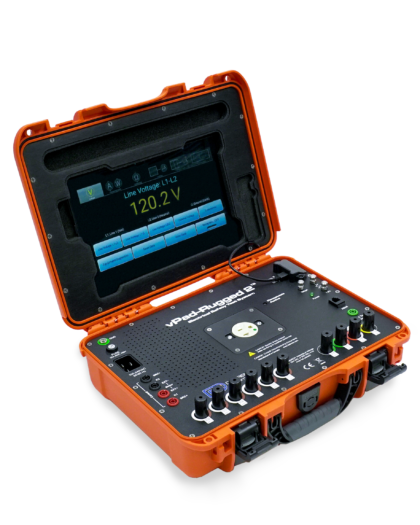

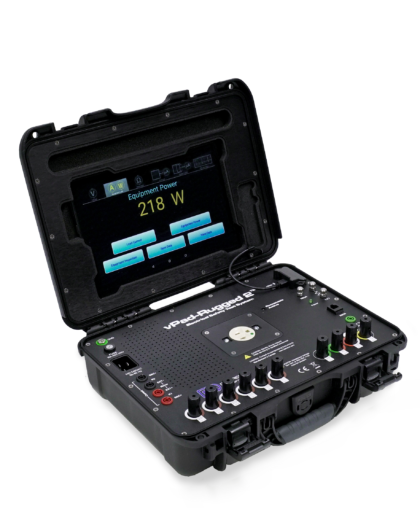

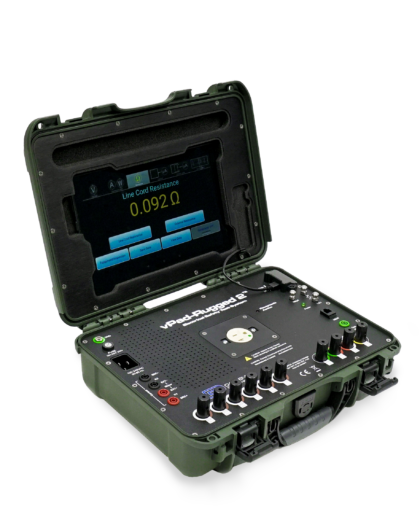

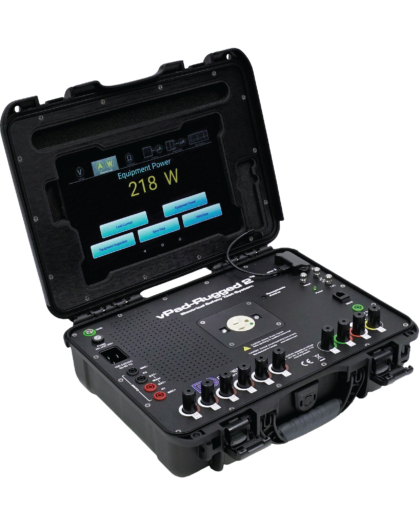

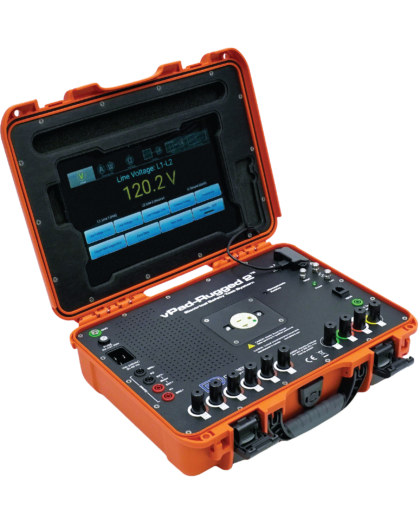

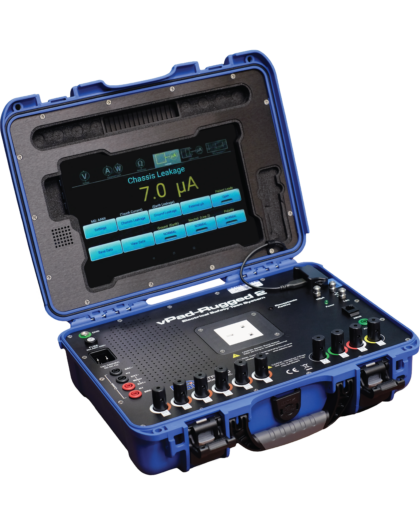

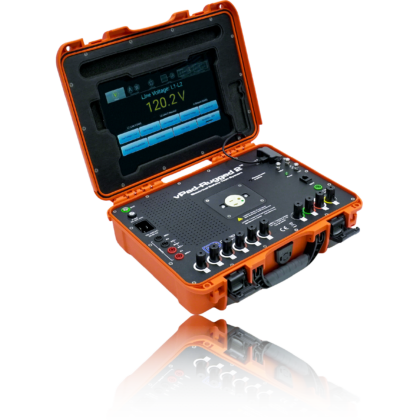

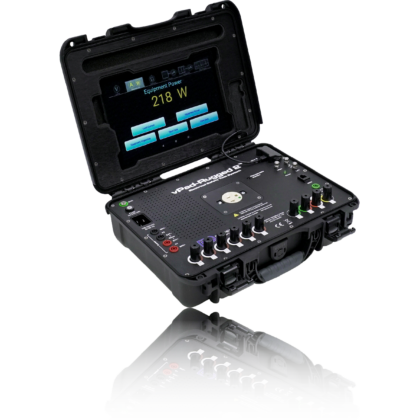

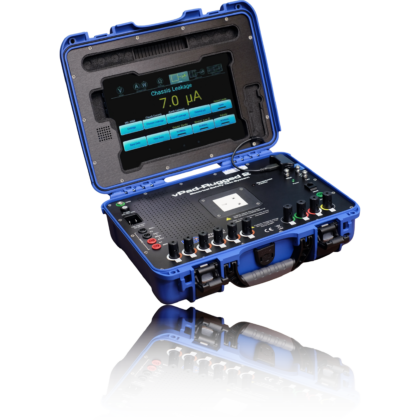

vPad-Rugged 2

  • Designed for the Field Service Engineering Community
  • Built-in Crush Proof case
  • Easy-to-read graphics and reports
  • Wireless Interface to Corporate CMMS System
  • Automated and Manual Electrical Safety Testing per IEC 62353, AAMI/ANSI ES-1, NFPA-99 2012 and IEC 60601
Receive more info and pricing from your local dealer

Main content

vPad‐Rugged 2 is much more than an Electrical Safety Analyzer ‐ it’s the heart of managing your Preventative Maintenance.

Using one of our CMMS Interface Apps, work orders can be downloaded at the start of the day. Automated Preventive Maintenance routines ensure that PMs are consistently carried out per OEM requirements. Completed PM records are uploaded to your CMMS to automate closure of open work orders.

Standard

  • Manual Electrical Safety Testing per IEC 62353, AS 3551, AAMI/ANSI ES-1 & IEC 60601 standards

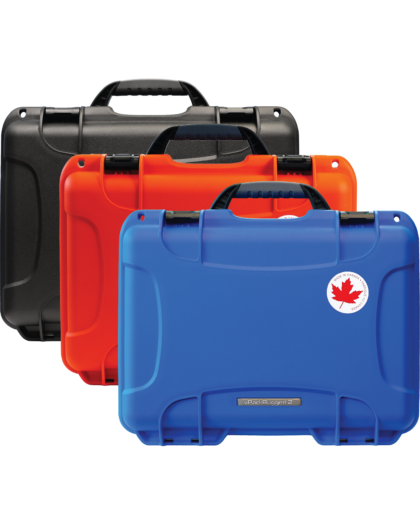

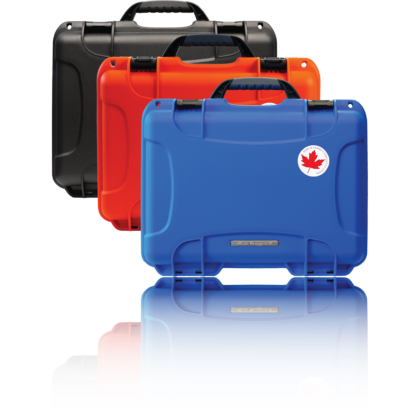

  • Built into a Crush Proof case that complies with ATA 300 Impact Test Standard
  • Waterproof to 3 feet for 30 minutes or more
  • Padlockable Powerclaw latching system with soft grip foldable handle
  • Hi-resolution Android tablet Graphical User Interface
  • USB connection to measurement base; Bluetooth connection to base optional
  • Bluetooth connectivity for transfer of files to and from local devices (PCs, tablets, cloud drives, etc.)
  • Extensive internal storage
  • Unlimited user comments in test records
  • Integrated ECG & Arrhythmia Simulator
  • Internal test record storage
  • Prints test result reports to optional Wi-Fi or Bluetooth printers
  • Increases quality, accuracy, and consistency

Optional

  • Automated Electrical Safety Testing per IEC 62353, AS 3551, AAMI/ANSI ES-1, IEC 60601 & NFPA-99 2012 standards
  • Can be upgraded from a basic manual tester to full automation with CMMS connectivity
  • Built-in Wireless enables transfer of data from remote sites to corporate CMMS systems
  • DACOM multi-device, serial control of external test instruments
  • Can be configured to retrieve test data from non-Datrend Devices
  • Complete test procedures available instantly
  • Automated Testing Sequences for defibrillators, infusion devices, patient monitors, and more
  • All Auto-sequences and Checklists are 100% editable for total procedural Customization
  • Automatic “flagging” of test results that are outside of pre-established test limits
  • Prints inspection stickers to optional label printers
  • Automation Reduces paperwork, eliminates handwritten records, standardizes medical device testing
  • Automation Increases efficiency – may save in excess of 50% over manual testing & hand-written records

Standard Apps

Datrend Docs

Datrend Docs

Save, Store and Find Technical Documents.

The vPad Datrend Docs is a technical document library, ideal for storing electronic manuals, procedures and specifications. Datrend Docs comes installed with all Operator Manuals for the vPad family.

Record Manager

Record Manager

View/Print/Convert and Copy Test Reports.

Record Manager provides direct access to all test reports created by the vPad Apps. Reports can be reviewed on screen. In addition, reports can be converted to PDF documents; printed to a wireless printer; or copied to USB or a Bluetooth device (PC) one at a time, or in user-selected groups. Test records can also be transferred directly to DropboxTM, box, Google Drive and OneDrive. File management has never been so easy or complete on a basic manual safety tester.

vPad-ES

vPad-ES

Begin your Vision-Pad Experience with a new standard in Electrical Safety Testing.

vPad-ES provides basic electrical safety testing in a new, rich graphical environment using an Android tablet. Testing can be done following the requirements of IEC 60601 or AAMI-ES1 standards. Operated through a 10.1″ Android tablet, intuitive user interface, a 25-point physical inspection checklist, and the ability to create test records on the go, running electrical safety tests has never been so easy!

vPad-623

vPad-623

Taking vPad-353 to the New Levels!

vPad-623 is a second-generation Android App to run on either the vPad-ES 2 or the vPad-Rugged 2. Improvements were made to fully support testing in accordance with IEC 62353 using the Direct, the Alternate, and the Differential Leakage Testing methods. As individual tests are made, a test record is created in internal memory. The results can be viewed at any time or saved to a test report file for printing or distribution. A 25-point, fixed format physical inspection procedure is standard, and forms part of the final test report. Basic electrical safety testing has never been so easy!

Optional Apps

vPad-AS

vPad-AS

Expand your Inspection Capabilities, Standardize your Test Methods, and Reduce Testing Times.

The vPad-AS is an automation application for the vPad-ES and ES 2, vPad-Rugged and Rugged 2 Electrical Safety Analyzers. This App provides the ability to automate the electrical safety test the way you require, to the Standard you want. Automation sequences, to follow the required Standard, can be created for as many scenarios as you can envisage, with no restrictions. These auto sequences can be named to your preference, with an additional description field to provide details of what the auto sequence entails – no more guessing. Test Instructions can be displayed, along with pictures or video to describe what to do during the test. In addition to this flexibility in creating electrical safety auto sequences, an Equipment Inspection, up to 50 steps, can also be tailored to your needs.

vPad-A6

vPad-A6

Customized Auto Sequences in accordance with IEC 62353.

vPad-A6 is an automated Electrical Safety Testing App designed to use and/or create automated electrical safety tests in accordance with IEC 62353. By creating and customizing auto sequences, users can categorize their managed inventory into grouped tests, allowing for consistency and repeatability. Including a test is as simple as selecting a check-box.

vPad-NFPA

vPad-NFPA

Electrical Safety Automation Testing in accordance to NFPA-99.

The vPad-NFPA has now become the go-to-method for Electrical Safety Testing in North America. This automation application for the vPad-ES and ES 2, vPad-Rugged and Rugged 2 has helped many organisations standardize testing on the equipment they manage. Not only could organisations control the type of tests they do through simple test selections, but they could also set higher pass/fail tolerances to further increase patient safety. Automation Apps such as vPad-NFPA has helped organisations large and small to standardize their testing, delivering a higher-level of quality and consistency.

vPad-STM

vPad-STM

Create Automated Electrical Safety Tests.

vPad-STM™ is a software application (App) which may be installed on vPad-ES 2™ and vPad-Rugged 2™ electrical safety analyzers, and which may be used in conjunction with vPad-AS™ and/or vPad-A6™ Apps to create automated electrical safety tests of arbitrary complexity. Such tests may be required when evaluating electrical safety of medical devices in full conformance with IEC standards.

vPad-STM provides these benefits when combined with the test capabilities of vPad-AS and vPad-A6:

  • Perform IEC electrical safety tests of equipment providing a variety of medical functions, where each medical function may have a differing number of applied parts (patient leads) and protection class (Type B, BF or CF)
  • Perform tests which combine measurements from different IEC safety standards, for example, perform leakage testing per IEC60601 in combination with insulation resistance testing per IEC62353
  • Perform electrical safety tests in accordance with Edition 2 of IEC60601, instead of Edition 3 which is the default used by vPad-AS when the “limits per standard” setting is enabled
vPad-Check

vPad-Check

The Ultimate Level of Automation.

Using a script based Checklist, the autosequence can now be any number of tasks, in any order, with pass/fail limits applied. Individual tasks can be almost anything: inspect, measure, pass/fail, electrical safety sequence (vPad-AS, vPad-NFPA or vPad-A6), etc. You will even be able to control other devices either wired or wirelessly, and import their test results. You can now create the test you want.

vPad-CAL

vPad-CAL

Tracks the Test Equipment Inventory, its Calibration Status, and includes this information in Tests Records.

As accreditation requirements change, the need to follow the tenets of the Quality Systems approach to all aspects of medical device maintenance is becoming the norm. One of these tenets is traceability. One of the requirements of a good, traceable service, preventive maintenance and calibration program is the ability to demonstrate that the work was performed using appropriate, calibrated test instruments. vPad-Cal provides a tool to track the test equipment inventory, its calibration status, and include this information in the test record for a device through the use of vPad-Check.

vPad-PM Tag

vPad-PM Tag

PM Label Printing Solution

This App is used to print preventive maintenance (PM) tags or labels from previously-saved test records through XBUS Smart Cable (XSC) accessories.

vPad-EQM

vPad-EQM

Equipment and Work Order Management system.

vPad-EQM is a simple and easy-to-use equipment manager app for your vPad system. Import your equipment information from any asset program that can create an Excel spreadsheet, or create it on-the-go as you encounter the equipment. Trace your work through work orders and test reports.

vPad-XPORT

vPad-XPORT

Convert Files to be Ready in Almost any Program.

vPad creates test reports in a text file format. vPad-XPORT can convert those files into a format that is compatible with your CMMS program. Currently, vPad-XPORT supports CSV, XML and MUP file formats, but if you can define your needs, we can probably create a conversion that works for your organization. Works in conjunction with vPad-mT.

vPad-mT

vPad-mT

Export Medtester Files to a vPad Compatible File.

If you are currently working with a CMMS program that produces medTester export files, vPad-mT will convert the files (MTEXPORT.ITM, MTEXPORT.LST, MTEXPORT.IDN) into a vPad-Check compatible file. (Pre-requisite: vPad-Check)

vPad-AIMS

vPad-AIMS

Phoenix Data Systems AIMS CMMS Interface App

Placeholder

vPad-Secure

Customizable Security for your vPad Tablet.

vPad-Secure is a multi-level security App for the vPad Platform, designed for organizations who need the ability to control workflow from a central location. With four levels of security, vPad-Secure enables administrators to set the level of access available to users of the vPad system. Download the vPad Secure Brochure to learn more.

vPad-MediMizer

vPad-MediMizer

Medimizer CMMS Interface App

vPad-CNX

vPad-CNX

Connectiv CMMS Interface App

Cable

3140-425
3140-425

XDK-Kelvin Cable

3140-475
3140-475

Kelvin Clamp Cable

3140-479
3140-479

Kelvin Probe Cable

7200-234
7200-234

Kelvin Probe Cable with removable, insulated clip

Power Cord

3000-009
3000-009

Power Cord, 15A, HOSP, 10', NA, (NEMA 5-15P -> C19)

3000-011
3000-011

Power Cord, EU1-16P, R/A Plug, 10', EU (Schuko CEE7-7 -> C19)

3000-012
3000-012

Power Cord, UK1-13P, R/A Plug, 10', UK (BS1363A -> C19)

3000-016
3000-016

Power Cord, Denmark 13A-250V, 13P Plug C-19 CONN 2.5M Black IEC 60320

3000-018
3000-018

Power Cord, Australia, 10', (AU2-15P -> C19)

3000-019
3000-019

Power Cord, 16A, 8’, Brazil, (BR3-20P -> C19)

Case/Bag

Placeholder
7006-070

vPad-Rugged 2 Accessory Bag

Interface Module

Placeholder
7400-098

XSC Dymo SE450 interface module: Serial + Bluetooth

Placeholder
7400-100

vPad XSC Dymo SE450 Interface Module( Serial/Wired)

Placeholder
7400-101

XSC Brady TLS PC interface module: Serial + Bluetooth

Placeholder
7400-102

XSC Brady TLS PC interface module: Serial/wired

Placeholder
7400-103

vPad XSC AMPS-1 Interface Module(Serial + Bluetooth)

Placeholder
7400-104

vPad XSC AMPS-1 Interface Module(Serial/Wired)

Placeholder
7400-105

vPad XSC mBOX Interface Module(Serial + Bluetooth)

Placeholder
7400-106

vPad XSC MBOX Interface Module(Serial/Wired)

Placeholder
7400-107

XSC Zebra GC240t interface module: Serial + Bluetooth

Placeholder
7400-108

XSC Zebra GC240t interface module: Serial/wired

Placeholder
7400-109

vPad XSC Phase 3 Interface Module(Serial/Wired)

Placeholder
7400-110

vPad XSC Phase 3 Interface Module(Serial+Bluetooth)

Placeholder
7400-111

vPad XSC PF300 Interface Module(Serial/Wired)

Placeholder
7400-112

vPad XSC PF300 Interface Module(Serial+Bluetooth)

Placeholder
7400-113

vPad XSC Impulse 7000 Interface Module(Serial/Wired)

Placeholder
7400-114

vPad XSC Impulse 7000 Interface Module(Serial+Bluetooth)

Barcode Scanner

Placeholder
7600-055

Barcode scanner (Bluetooth)

Tablet

Placeholder
7050-110

Configured Tablet without Apps enabled, NA Charger

Placeholder
7050-111

Configured Tablet without Apps enabled, UK Charger

Placeholder
7050-112

Configured Tablet without Apps enabled, CN Charger

Placeholder
7050-113

Configured Tablet without Apps enabled, EU Charger

Upgrade Kit

Placeholder
7500-122

Bluetooth Wireless Option for vPad-Rugged 2

Package

Placeholder
Automation Package 1

vPad-AS, vPad-A6, vPad-STM

Placeholder
Automation Package 2

vPad-AS, vPad-Check, vPad-Cal

Placeholder
Automation Package 3

vPad-NFPA, vPad-Check, vPad-mT, vPad-XPORT, CMX

Placeholder
Automation Package 4

vPad-AS, vPad-NFPA, vPad-STM

Placeholder
Automation Package 5

vPad-EQM, vPad-Check, vPad-CMX & vPad-AS or vPad-NFPA

Placeholder
CMMS Package (AS or NFPA Required)

vPad-Check, vPad-MT, vPad-XPORT, CMX

Placeholder
Equipment Management Package

vPad-EQM, vPad-Cal, vPad-Check, CMX
