vPad-RF

ESU Analyzer

Introducing vPad-RF, the smallest full-featured analyzer for testing Electrosurgical Units (ESUs). Built on Datrend’s revolutionary Vision-Pad platform, each unit comes with a built-in HF Digital Oscilloscope and Spectrum Analyzer.

Receive more info and pricing from your local dealer

Main content

vPad-RF is the smallest full-featured analyzer for testing Electrosurgical Units (ESUs).

Built on our Vision-Pad platform, vPad-RF has all the functionality you have come to expect from products built on this platform. What really makes this product unique is its built-in HF Digital Scope and Spectrum Analyzer.

  • Use the many benefits of Android tablet technology to optimize testing
  • Save time, save money, save manpower!
  • Automate test sequences
  • Eliminate human error
  • Easy-to-read graphics and reports
  • User Programmable
  • Digital signal processor (DSP) enables accurate testing of all ESU makes and models, continuous and pulsed-waveforms
  • Integration of ESU testing with HF digital storage oscilloscope and spectrum analyzer functions provides three pieces of test equipment in one
  • Multi-pulse analysis averages measurements from multiple RF pulses, reducing errors caused by analyzing pulses in isolation
  • High powered RF load provides settings required for all IEC 60601-2-2 tests, including Covidien ForceTriad maintenance procedures
  • Wide measurement range – up to 8.5A
  • Pre-Configured OEM Preventive Maintenance automated procedures for most major manufacturers
  • Works with vPad safety analyzers and automation apps

Standard Apps

Datrend Docs

Datrend Docs

Save, Store and Find Technical Documents.

The vPad Datrend Docs is a technical document library, ideal for storing electronic manuals, procedures and specifications. Datrend Docs comes installed with all Operator Manuals for the vPad family.

Record Manager

Record Manager

View/Print/Convert and Copy Test Reports.

Record Manager provides direct access to all test reports created by the vPad Apps. Reports can be reviewed on screen. In addition, reports can be converted to PDF documents; printed to a wireless printer; or copied to USB or a Bluetooth device (PC) one at a time, or in user-selected groups. Test records can also be transferred directly to DropboxTM, box, Google Drive and OneDrive. File management has never been so easy or complete on a basic manual safety tester.

vPad-RF

vPad-RF

An all-in-one application to meet all of your ESU testing needs.

The vPad-RF App comes standard with every vPad-RF ESU Analyzer. Both manual and automated ESU testing, operator’s manual, and access to test records are all accessible from a single easy to use menu system. Even in manual mode, vPad-RF clearly displays instructional images to help users connect ESU under tests to vPad-RF. With a built-in digital oscilloscope and a spectrum analyzer, vPad-RF truly is a powerful App!

Optional Apps

vPad-RF Remote

vPad-RF Remote

Cable

3140-069
3140-069

Cable, vPad XBus/XSC RJ12-RJ12, CROSSOVER BLACK 7'

3220-600
3220-600

Shorting Jumper

7200-540
7200-540

Valley Lab Foot Switch Cable, Cut/Coag, Monopolar

7200-541
7200-541

Force Triad Foot Switch Cable, Cut/Coag

7200-542
7200-542

Conmed Foot Switch Cable, Cut/Coag, Monopolar

7200-543
7200-543

Erbe ICC350 Foot Switch Cable, Cut/Coag

Placeholder
7200-544

Multi ESU Foot Switch Cable, Bipolar

Placeholder
7200-545

Bowa Foot Switch Cable, Cut/Coag, Monopolar

7200-546
7200-546

Olympus Foot Switch Cable, Bipolar

7200-547
7200-547

Olympus Foot Switch Cable, Cut/Coag, Monopolar

Placeholder
7200-548

Unterminated ESU Foot Switch Cable

Placeholder
7200-549

Bifurcated Foot Switch Cable, Unterminated at ESU

7200-557
7200-557

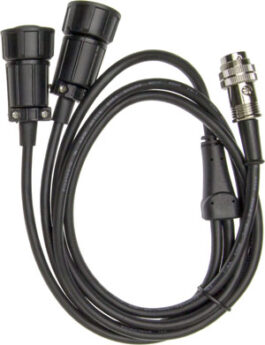

Force Triad Foot Switch Cable, Mono/Bipolar

Placeholder
7200-558

Conmed Foot Switch Cable, Mono/Bipolar

7200-559
7200-559

Valleylab Foot Switch Cable, Mono/Bipolar

7200-570
7200-570

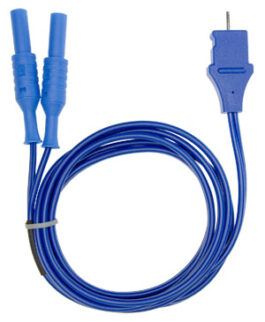

REM test cable, 60", 2 blue banana plug cable with non-retractable safety sleeve to REM enabling plug (pin intact)

7200-571
7200-571

REM test cable, 60", 2 blue banana plug cable with non-retractable safety sleeve to REM enabling plug (made from disposable REM cable with pin removed)

7200-572
7200-572

Dispersive lead for HF Leakage Test, 60", 1 blue banana plug with non-retractable safety sleeve to REM disabling plug

7200-573
7200-573

Test pencil, Monopolar, 2 button, Valley Lab, Conmed, Olympus, others with 10" red lead and retractable sleeve banana plug

7200-574
7200-574

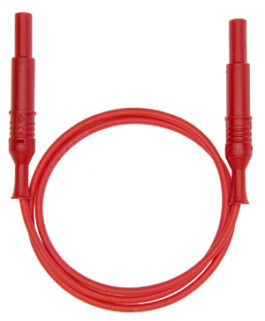

Test Lead, 30" red, with 2 retractable sleeve banana plugs

7200-575
7200-575

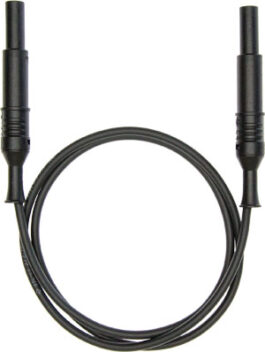

Test Lead, 30" black, with 2 retractable sleeve banana plugs

7200-576
7200-576

Activation Jumper, Cross Coupling Test Plug (Conmed)

7200-577
7200-577

Force Triad UFP to banana Cable Assembly

7200-578
7200-578

Olympus ESG-400 'E001' Test cable

7200-579
7200-579

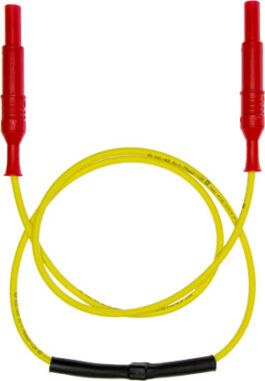

Olympus ESG-400 'AEOP' Test cable

7200-580
7200-580

Force Triad calibration key (2 black dots)

7200-582
7200-582

HF Leakage Jumper

Power Cord

3000-004
3000-004

Power Cord, UK

3000-005
3000-005

Power Cord, AU/CN

3000-006
3000-006

Power Cord, EU

3000-007
3000-007

Power Cord, IN/ZA

3000-471
3000-471

Power Cord, NA

3000-474
3000-474

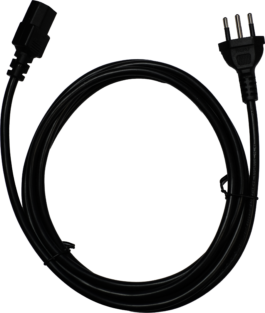

Power Cord, BR

Kit

Placeholder
7500-150

Covidien Force Triad Test Accessory Kit (7200-557 + 7200-577 +7200-571 +7200-580)

7500-151
7500-151

ValleyLab FX Test Accessory Kit (7200-559 + 7200-571 + 7200-573)

7500-152
7500-152

Conmed 5000 Test Accessory Kit (7200-558 + 7200-573 + 7200-576)

Placeholder
7500-153

Olympus ESG-400 Test Accessory Kit (7200-578 + 7200-579 +7200-573 + 7200-571)

Placeholder
7500-430

Kit, Banana Test Lead/Crocodile Clip, Green

Case/Bag

7006-066
7006-066

Accessory Bag, 12 in x 6.5 in x 3 in

Misc

Placeholder
7400-146

vPad-RF External Resistor Bank 5000 ohm

Placeholder
7400-147

vPad-RF External Resistor Bank 5200 ohm
